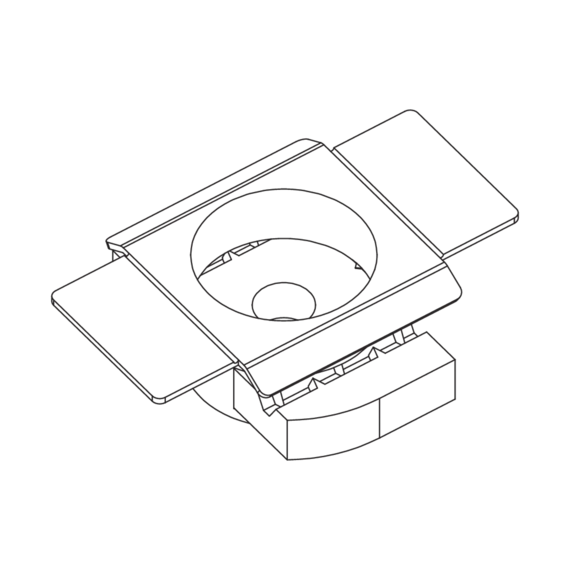

AMK 22 Ankermutter mit Kunststoffhalter Channel nut with plastic bracket

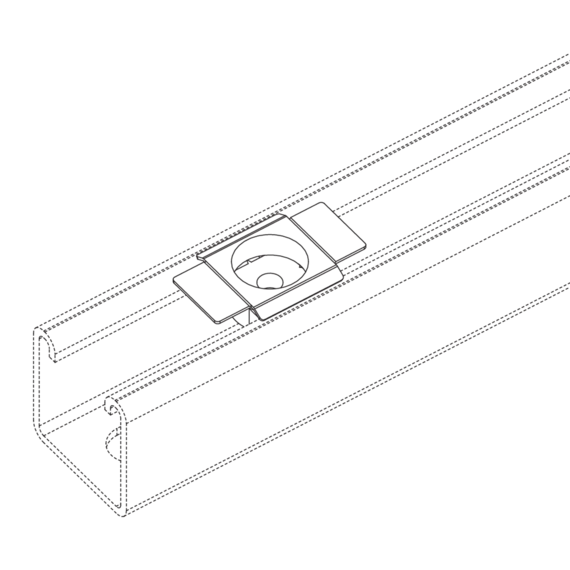

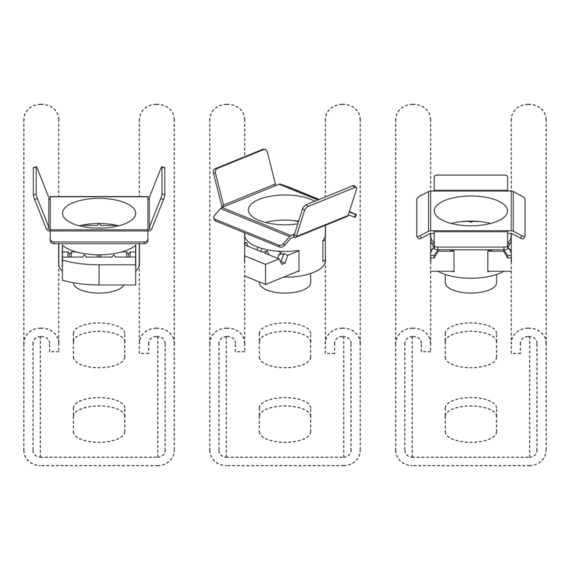

Channel nuts with plastic fixing aid AMK 22 are threaded plates that are used with mounting rails A 41, KHA 41 and KHAL 41. A 90° turn after insertion or tilting holds the nut in the mounting/profile rail. The plastic fixing aid is used to hold the anchor nut in position. The anchor nuts, also known as rail nuts, can be positioned precisely after installation thanks to the pronounced toothing. Ideally suited for vertically installed rails. Another advantage is that no spring is used, which can jam in perforated rails. AMK 22 are available in M6, M8, M10 and M12 threads. Different materials and surfaces ensure that the corrosion protection requirements of a wide range of applications are met.
