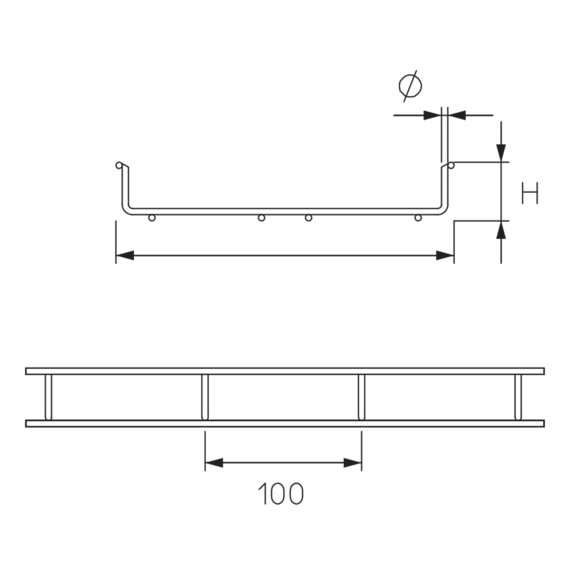

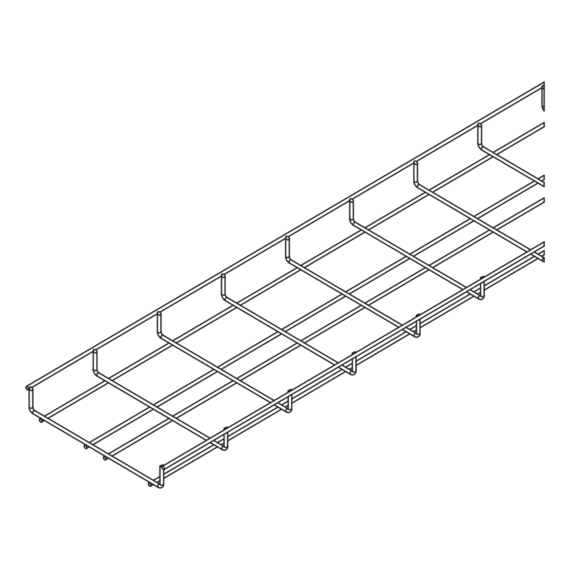

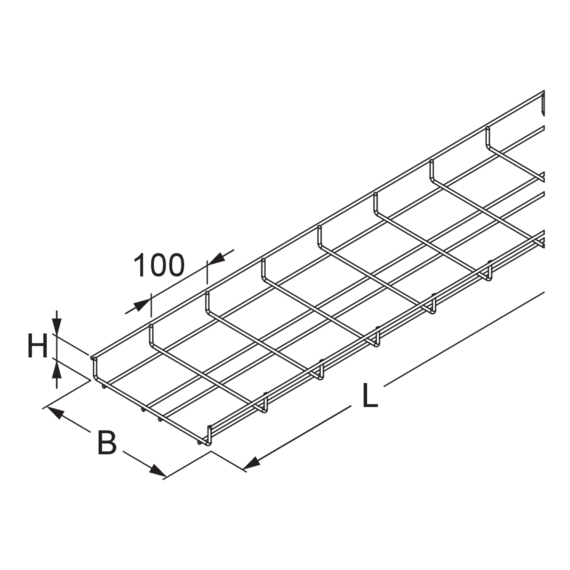

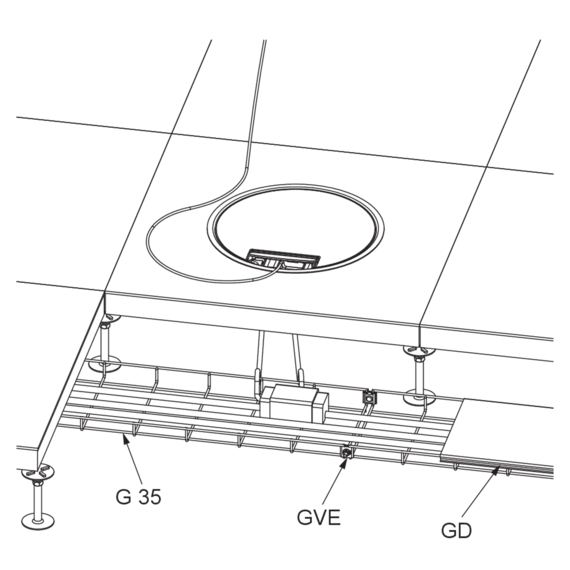

The U-shaped G 35 mesh cable tray has a side height of 38 mm and is available in tray widths from 116 to 618 mm. The standard length is 3004 mm. For the routing of light cables and conduits, especially for direct and raised floor installation and intermediate floors. A variety of materials and finishes are available to meet the corrosion requirements of a wide range of applications.
The GVE mesh cable tray connector must be used for the G 35 mesh cable tray.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | length | QSKdistributed load control cable | diameter | A cross section area | weight | ||
|---|---|---|---|---|---|---|---|
| G 35-10S | 116 mm | 3004 mm | 0,04 kN/m | 4,00 mm | 29 cm² | 1,690 kg | |
| G 35-15S | 166 mm | 3004 mm | 0,07 kN/m | 4,00 mm | 43 cm² | 1,850 kg | |
| G 35-20S | 216 mm | 3004 mm | 0,09 kN/m | 4,00 mm | 58 cm² | 2,590 kg | |
| G 35-30S | 316 mm | 3004 mm | 0,13 kN/m | 4,00 mm | 87 cm² | 3,500 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | length | QSKdistributed load control cable | diameter | A cross section area | weight | ||
|---|---|---|---|---|---|---|---|
| G 35-10F | 116 mm | 3004 mm | 0,04 kN/m | 4,00 mm | 29 cm² | 1,810 kg | |
| G 35-15F | 166 mm | 3004 mm | 0,07 kN/m | 4,00 mm | 29 cm² | 1,810 kg | |
| G 35-20F | 216 mm | 3004 mm | 0,13 kN/m | 4,00 mm | 87 cm² | 3,740 kg | |
| G 35-30F | 316 mm | 3004 mm | 0,13 kN/m | 4,00 mm | 87 cm² | 3,740 kg |
galvanized, according to ISO 19598 / ISO 2081
| width | length | QSKdistributed load control cable | diameter | A cross section area | weight | ||
|---|---|---|---|---|---|---|---|
| G 35-10GV | 116 mm | 3004 mm | 0,04 kN/m | 4,00 mm | 29 cm² | 1,690 kg | |
| G 35-15GV | 166 mm | 3004 mm | 0,07 kN/m | 4,00 mm | 43 cm² | 1,850 kg | |
| G 35-20GV | 216 mm | 3004 mm | 0,09 kN/m | 4,00 mm | 58 cm² | 2,590 kg | |
| G 35-30GV | 316 mm | 3004 mm | 0,13 kN/m | 4,00 mm | 87 cm² | 3,500 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | length | QSKdistributed load control cable | diameter | A cross section area | weight | ||
|---|---|---|---|---|---|---|---|
| G 35-10E | 116 mm | 3004 mm | 0,04 kN/m | 4,00 mm | 43 cm² | 1,690 kg | |
| G 35-15E | 166 mm | 3004 mm | 0,07 kN/m | 4,00 mm | 43 cm² | 1,850 kg | |
| G 35-20E | 216 mm | 3004 mm | 0,09 kN/m | 4,00 mm | 58 cm² | 2,590 kg | |
| G 35-30E | 316 mm | 3004 mm | 0,13 kN/m | 4,00 mm | 87 cm² | 3,500 kg |
